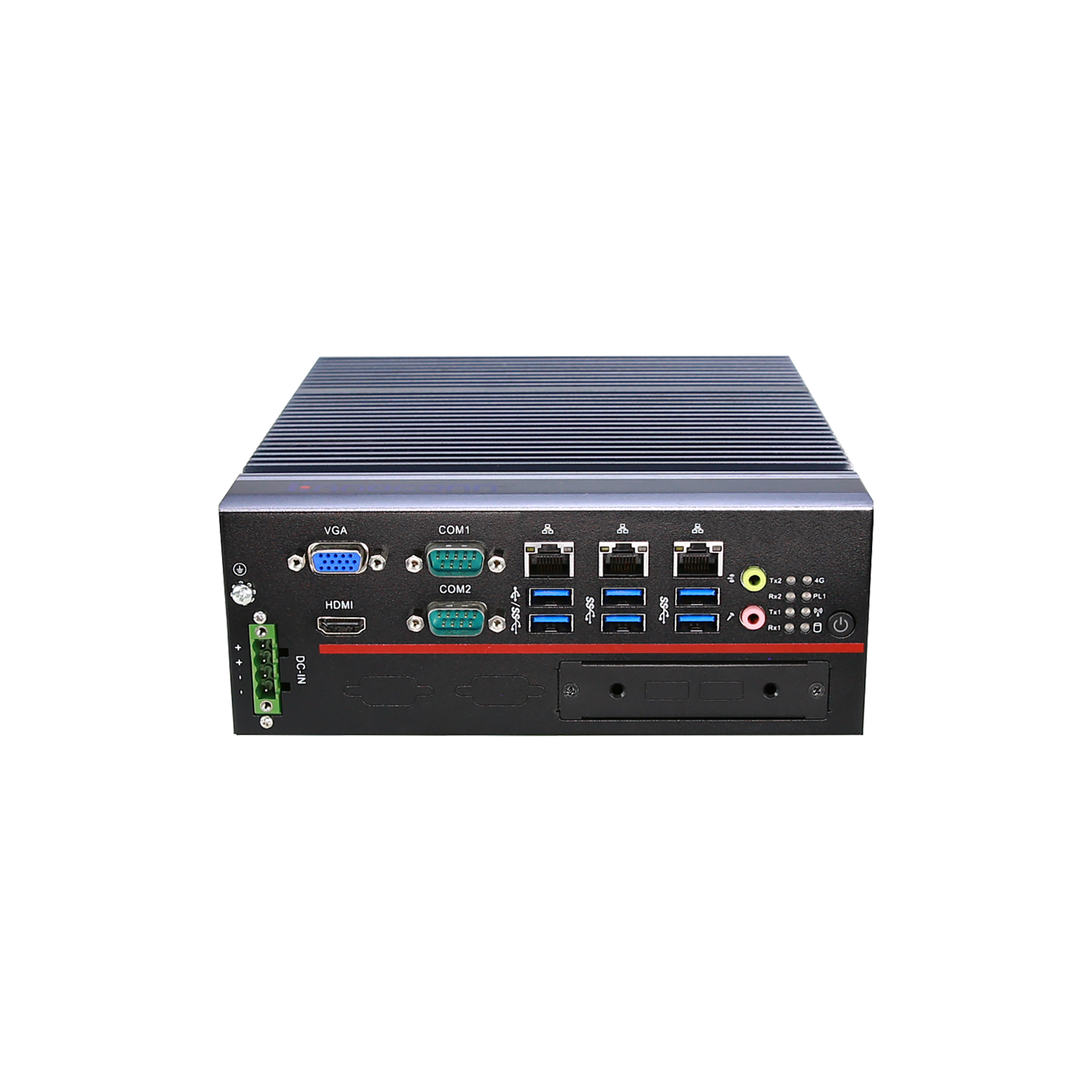

嵌入式工業電腦 CES-EQ17-D32A

采用Skylake-S/Kabylake-S系列LGA1151奔騰/賽揚/酷睿處理器，搭載Q170芯片組
支持雙通道DDR4 2133MHz SODIMM內存插槽，內存容量最大可達32GB
支持三個千兆網口
支持VGA，HDMI雙顯
內置2 x 2.5寸HDD/SSD支架
內置1 x Mini-PCIe/mSATA槽，1 x M.2 2230 wifi卡槽及1 x M.2 2242擴展槽
可支持PCIe X16，PCIe X4，PCIe X1及PCI擴展插槽
標準19~24V DC電源輸入，可選寬壓9~36V DC-IN
支持樺漢oDoor模組技術，可靈活選配LAN/COM/CAN/USB等

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 6th/7th Gen. Pentium?, Celeron?, Core? i3/i5/i7 Processor, LGA1151 Socket, up to 65W

系統 System

處理器 Processor	Intel^? 6th/7th Gen. Pentium^?, Celeron^?, Core? i3/i5/i7 Processor, LGA1151 Socket, up to 65W
芯片組 Chipset	Intel Q170 Chipset
內存 Memory	2 x DDR4 2133MHz SO-DIMM, Up to 32GB
圖形 Graphics	Intel^? HD Graphics 530/510 (Intel 6th Gen. CPU) Intel^? HD Graphics 630 (Intel 7th Gen. CPU)
存儲 Storage	2 x 2.5" SATA 3.0 HDD/SSD Bay, support RAID 0/1 1 x mSATA slot 1 x M.2 2242 SSD slot
操作系統 OS	Windows7/8/10,Linux(Intel^? 6th/ CPU) Windows10,Linux(Intel^? 7th/ CPU)
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	2 x RJ45, Intel^? i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel^? I219LM GbE (10/100/1000 Mbps)
顯示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160
音頻 Audio	1 x Line-out, 1 x Mic-in, Realtek^? ALC888S HD Audio codec
串口 COM	2 x RS232/422/485 auto-flow 2 x RS232/422/485 auto-flow (optional by internal pin head) 2 x RS232 (optional by internal pin head)
USB	6 x USB3.0，2 x USB3.0（optional by internal pin head）
按鈕 Button	1 x Power button
指示燈 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED (yellow blink for communication) 1 x 4G communication LED (yellow blink for communication) 1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, CPU/SYS Fan speed, etc）
遠程開關 Remote ON-OFF	1 x Remote ON-OFF

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 Key-E slot(Wifi module supported)
SIM 卡	1 x 3G/4G SIM socket

環境 Environmental

操作溫度 OperatingTemp.	-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

19~24V DC, 4-pin phoenix connector (9~36V DC optional with power board)

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	桌面式 (Desk-Mount), 壁掛式 (Wall-Mount)

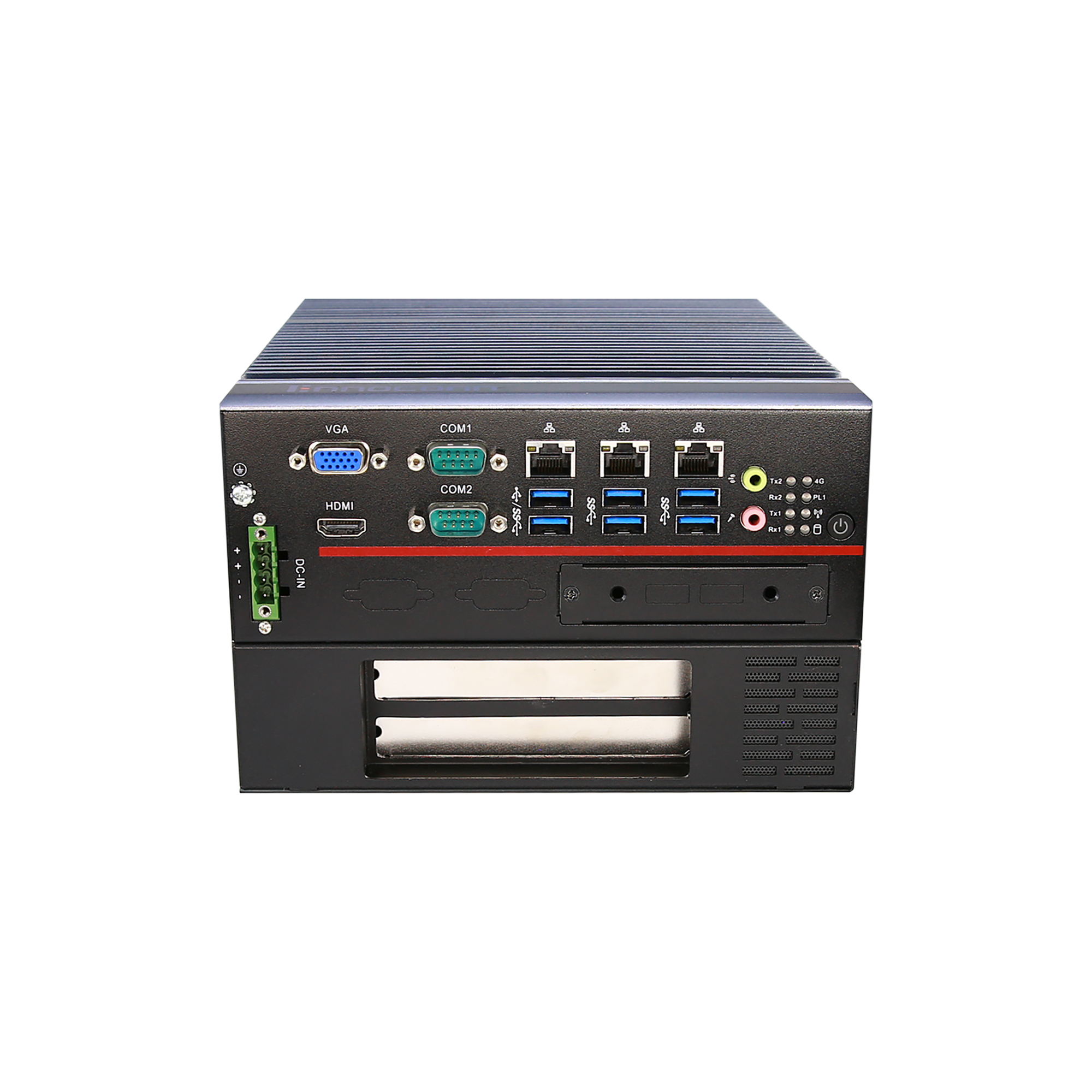

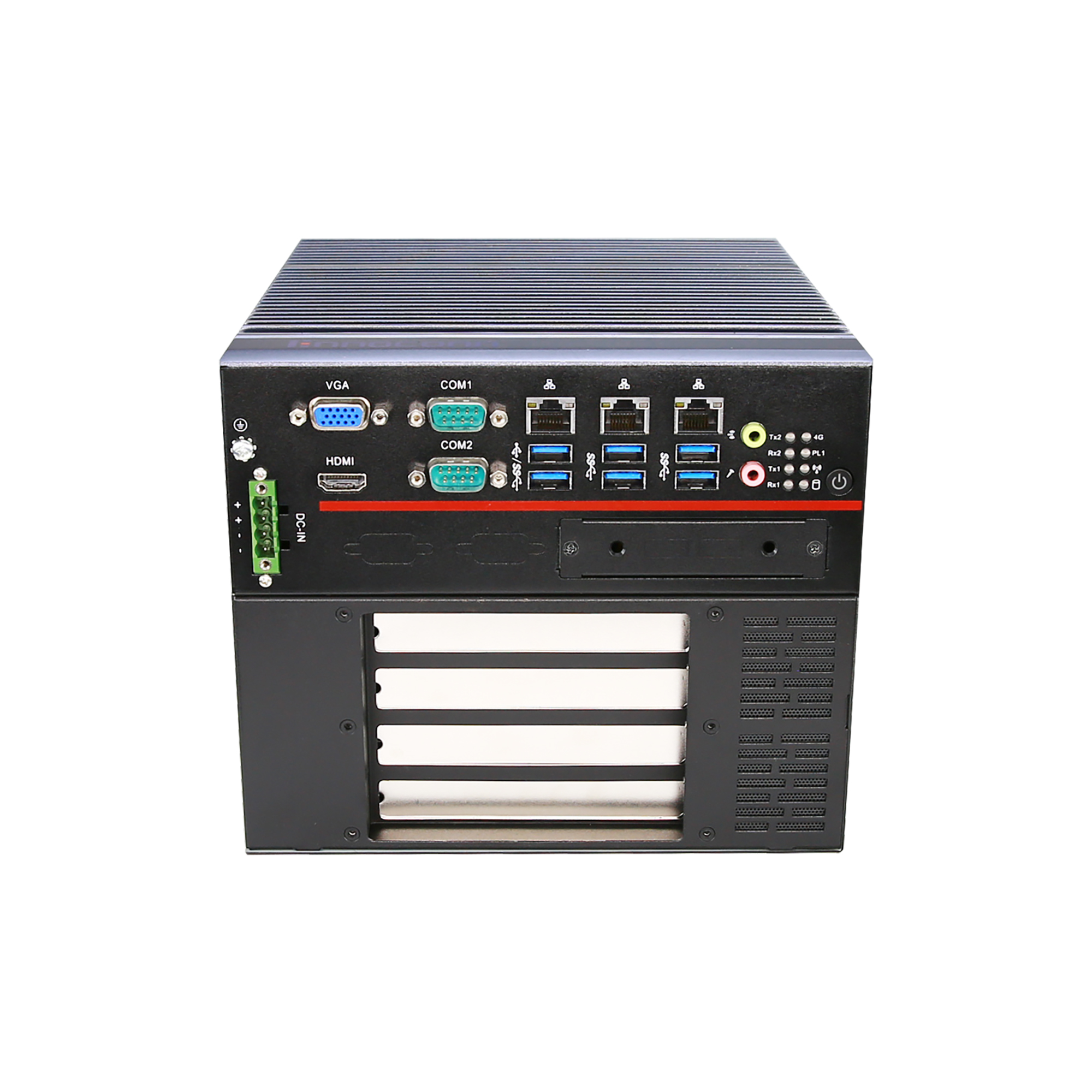

尺寸 Dimension	200 x 230 x 78 mm( 基礎型),200 x 230 x 129 mm(2 槽擴張型) 200 x 230 x 169 mm(4 槽擴展型)
重量 Weight	3.5kg( 基礎型), 4.2kg(2 槽擴展型), 4.9kg(4 槽擴展型)
