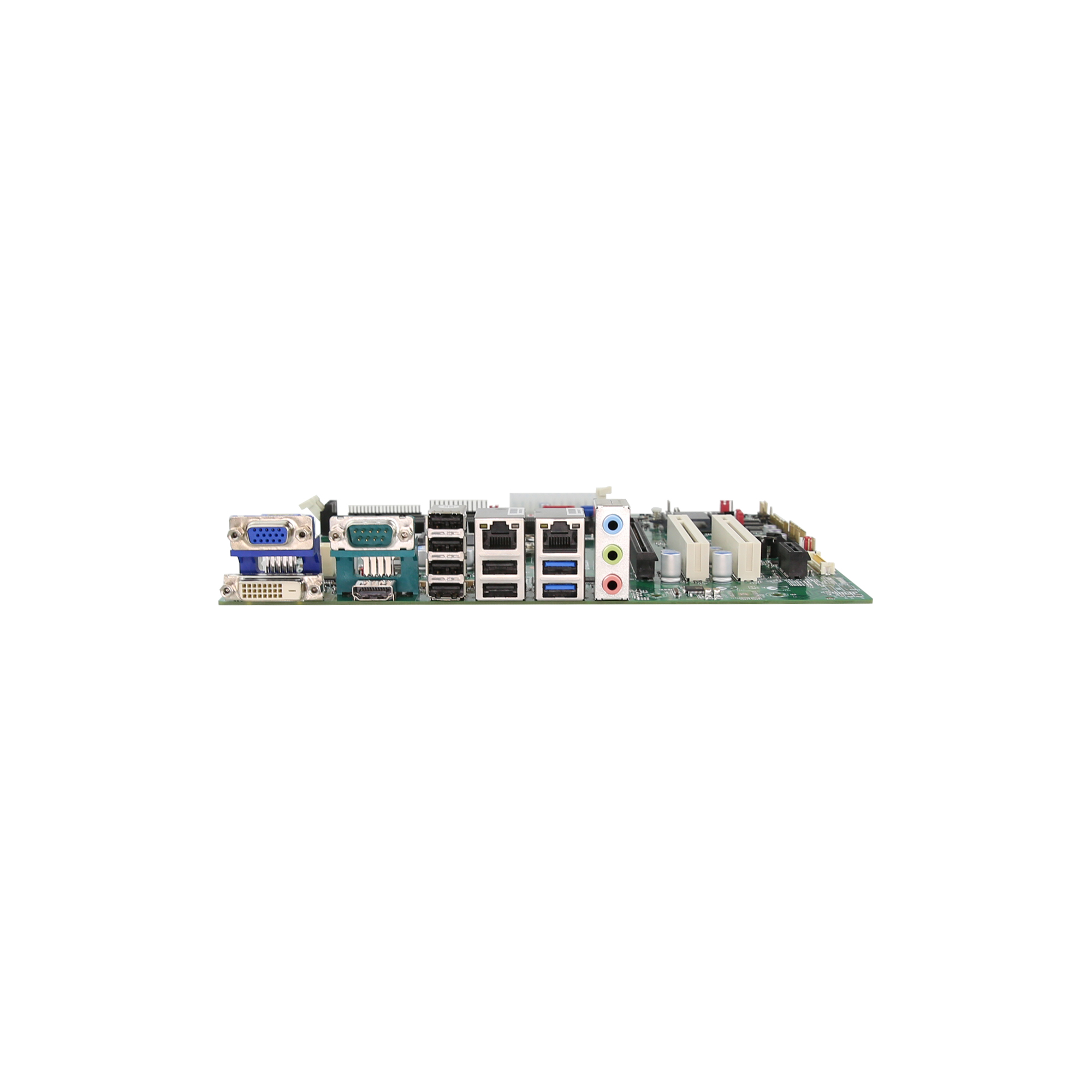

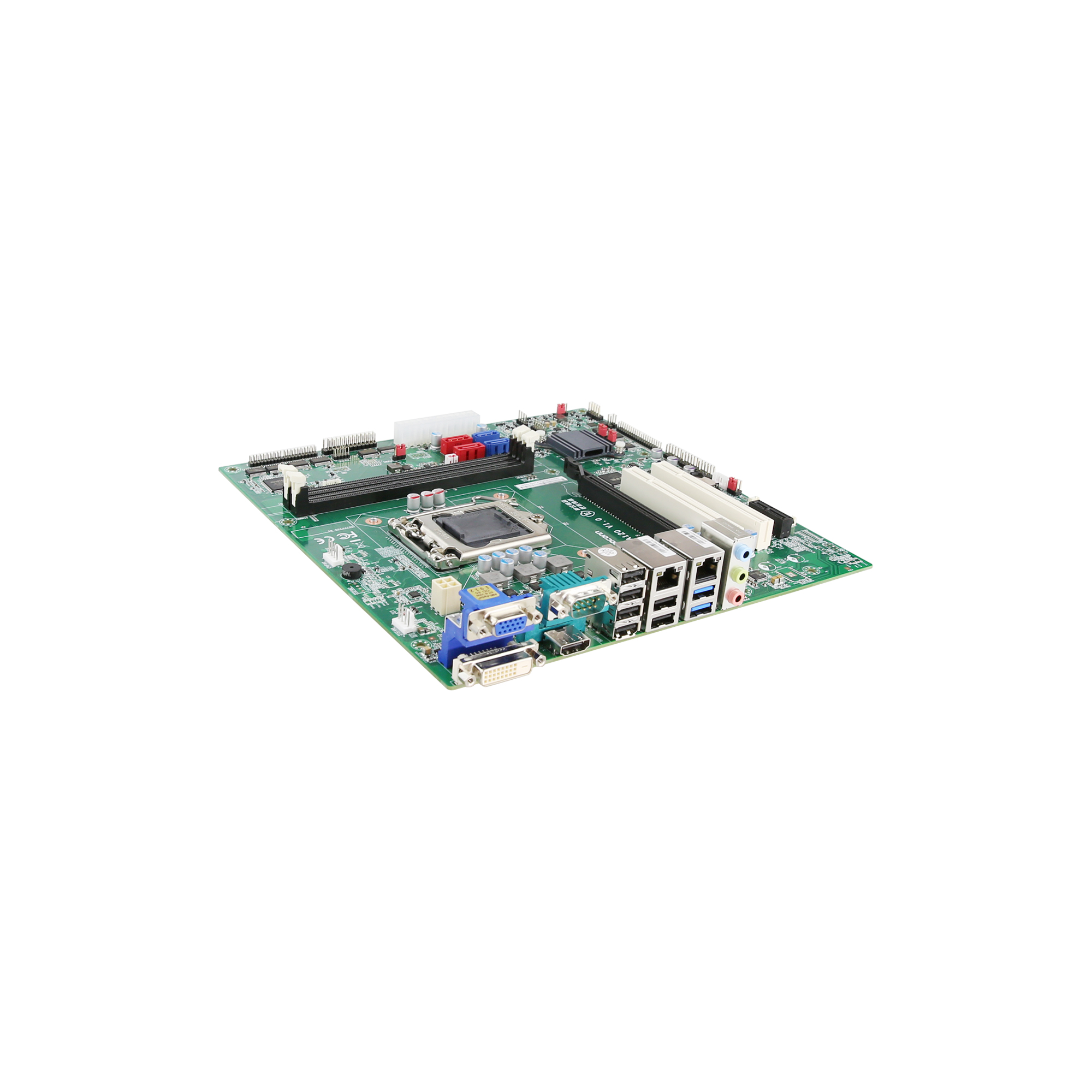

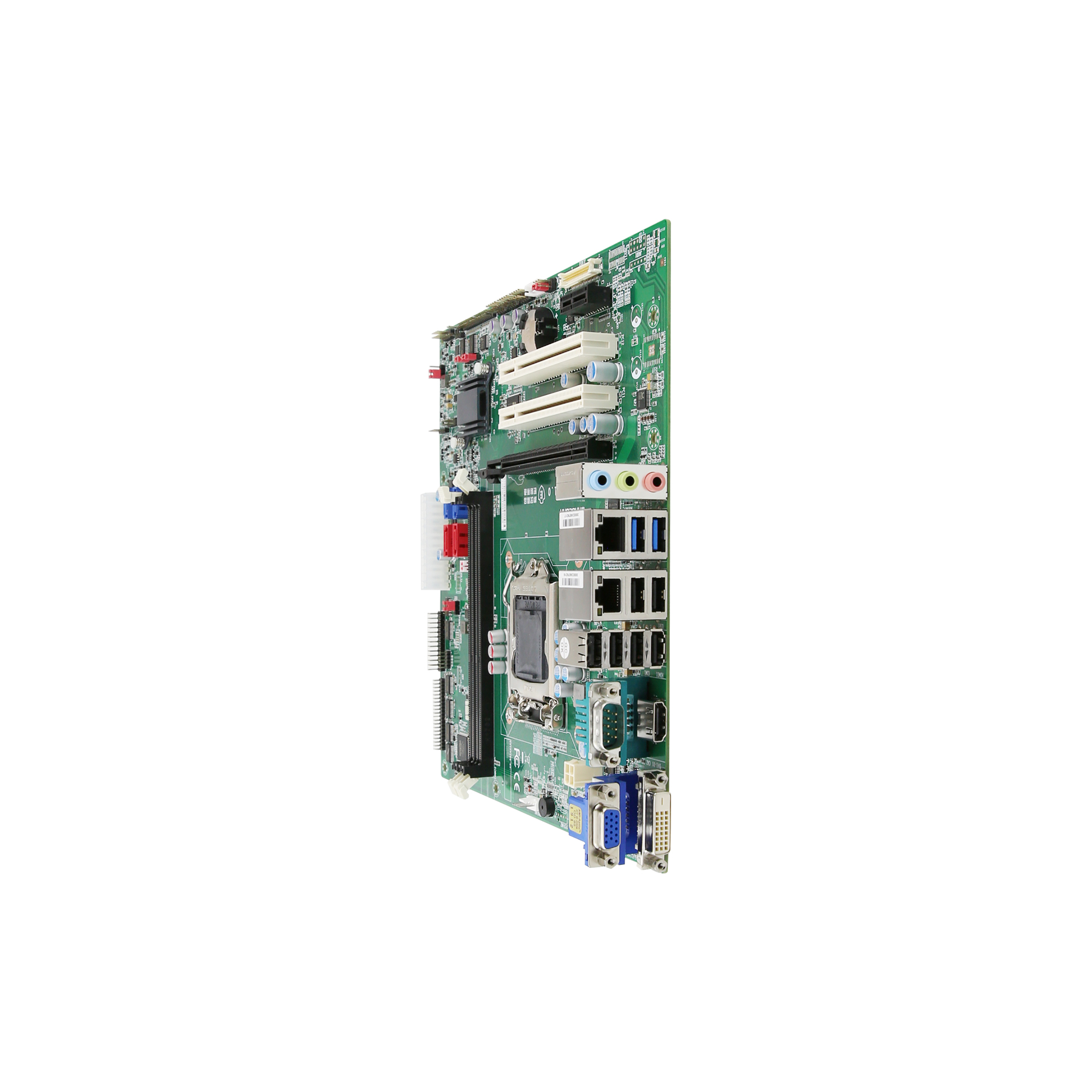

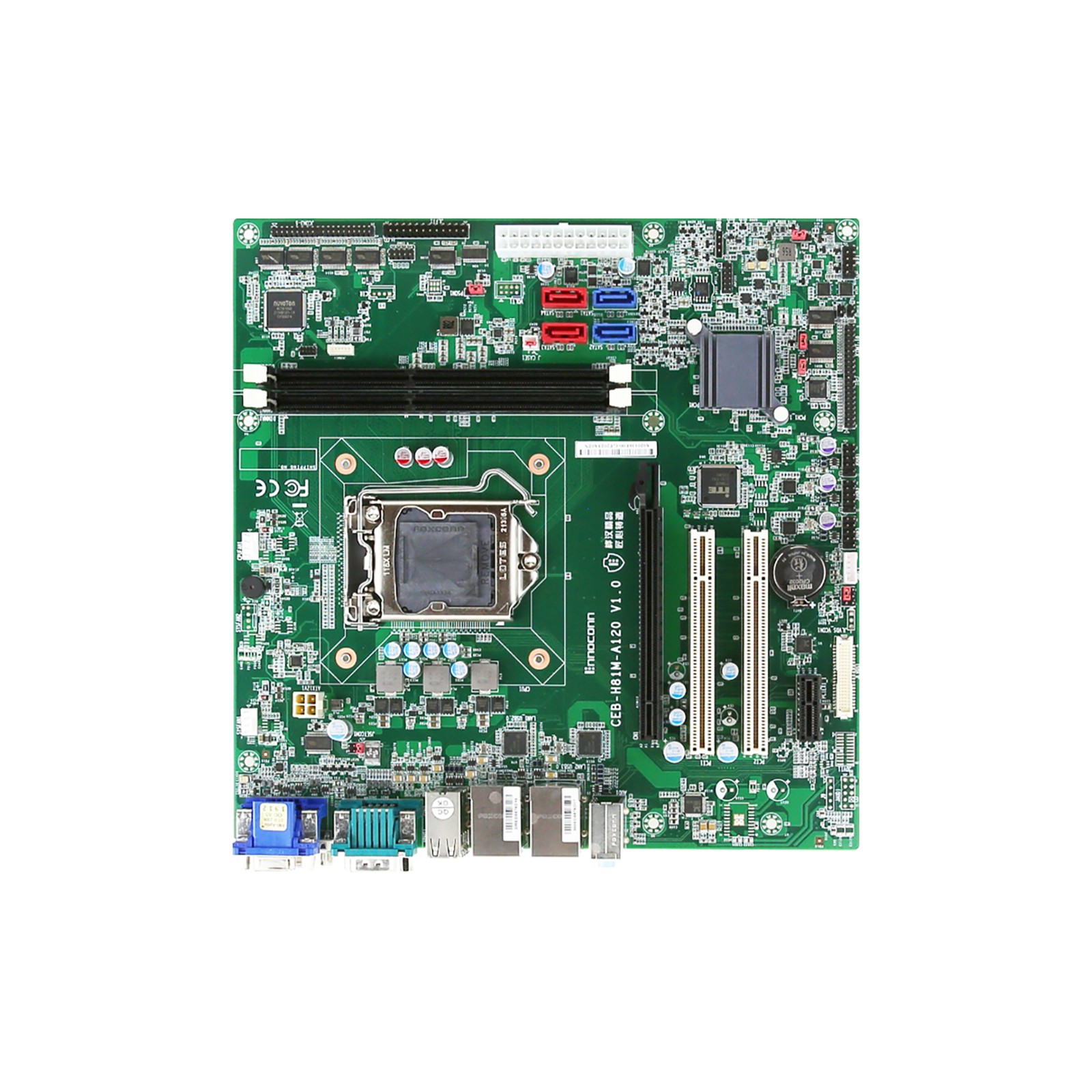

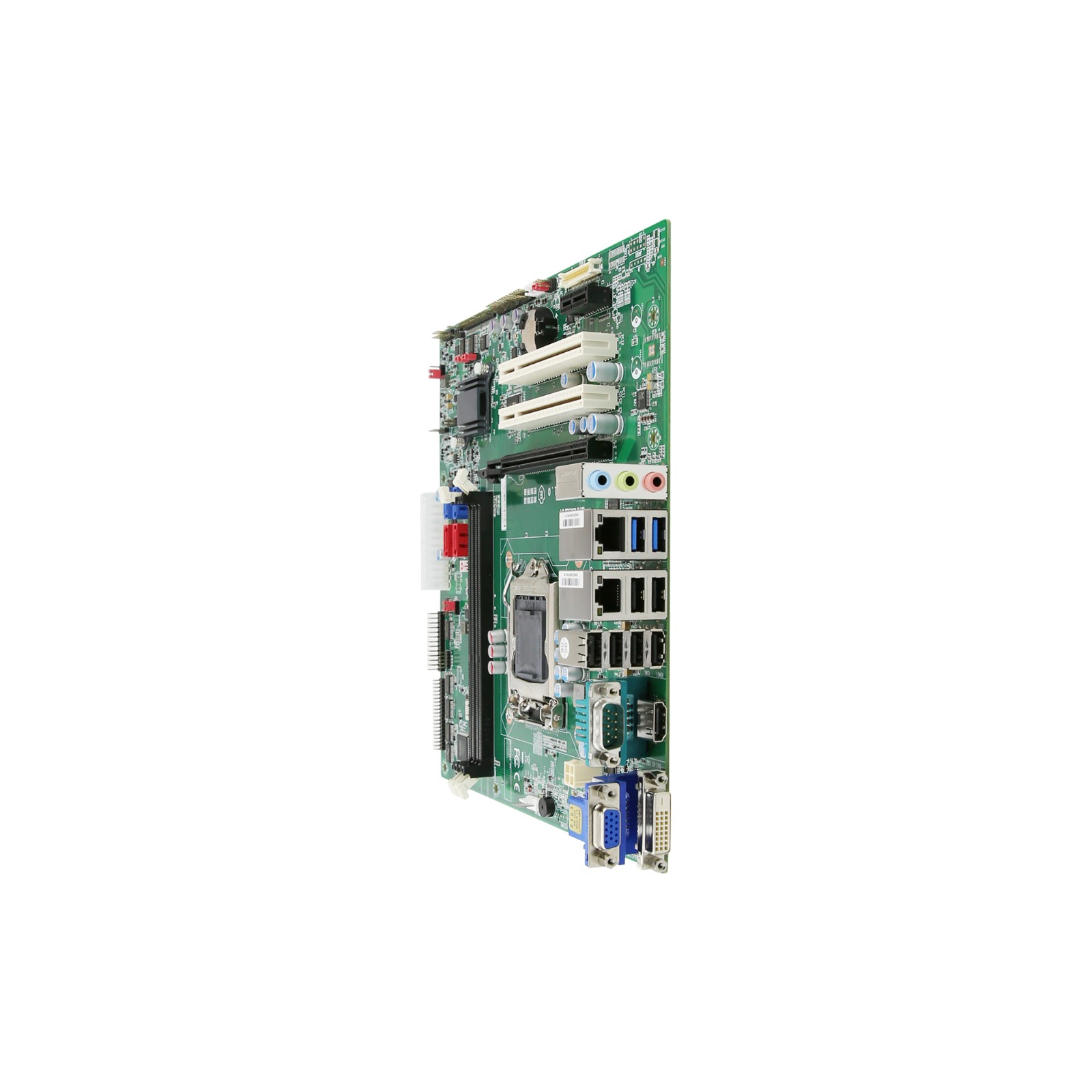

Micro-ATX工業主板 CEB-H81M-A120

Intel^?4代酷睿 i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到65W
雙通道 DDR3(1.5V)1333/1600MHz, 高達16GB
支持VGA, DVI-D, HDMI, LVDS, 獨立雙顯
支持雙 GbEs, SATA3.0, USB3.0, 8位GPIO
支持2個RS232/422/485和8個RS232串聯端口
1個PCIe X16 (Gen2)和1個PCIe X1, 和2個PCI 擴展口
支持 S5狀態下USB斷電功能
支持Ennoconn USB SR Pro技術

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel?4th Core ? i7/i5/i3/Pentium?/Celeron? Processor, LGA1150 Socket, TDP up to 65W

處理器 Processor	Intel^?4th Core ? i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1150 Socket, TDP up to 65W
芯片組 Chipset	Intel^? H81
內存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3(1.5V) 1333/1600MHz, up to 16GB
存儲 Storage	2 x SATA2.0, 2 x SATA3.0
顯示 Display	Intel^? HD Graphics
網口 Ethernet	2 x Intel^? i211-AT GbE (10/100/1000 Mbps)
音頻 Audio	Realtek^? ALC888S HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS
外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1600@60Hz 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 4096 x 2304@24Hz 2 x USB3.0, 6 x USB2.0 support USB SR Pro 2 x RJ45 1 x RS232 1 x Line-in, 1 x Line-out（5W/8Ohm AMP optional), 1 x Mic-in
內部接口 Internal I/O	1 x LVDS: supports dual channel 24 bit and up to 1920 x 1200@60Hz 6 x USB2.0 1 x 8 bit GPIO 2 x RS232/422/485, 7 x RS232 1 x CPU_Fan, 1 x SYS_Fan 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse)
擴展接口 Expansion	1 x PCIe X16 (Gen2) 1 x PCIe X1(Gen2） 2 x PCI
信賴平臺模塊 TPM	Nuvoton TPM1.2 (optional, need MOQ）
環境 Environment	操作溫度 Operation Temp.: 0℃ ~ 60℃ 存儲溫度 Storage Temp.: -40℃ ~ 85℃ 操作濕度 Operation Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing 存儲濕度 Storage Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing
電源輸入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6")
操作系統 OS	Windows7/8.1/10, Linux
看門狗 Watchdog Timer	System reset, Programmable via software from 1 to 255 seconds
