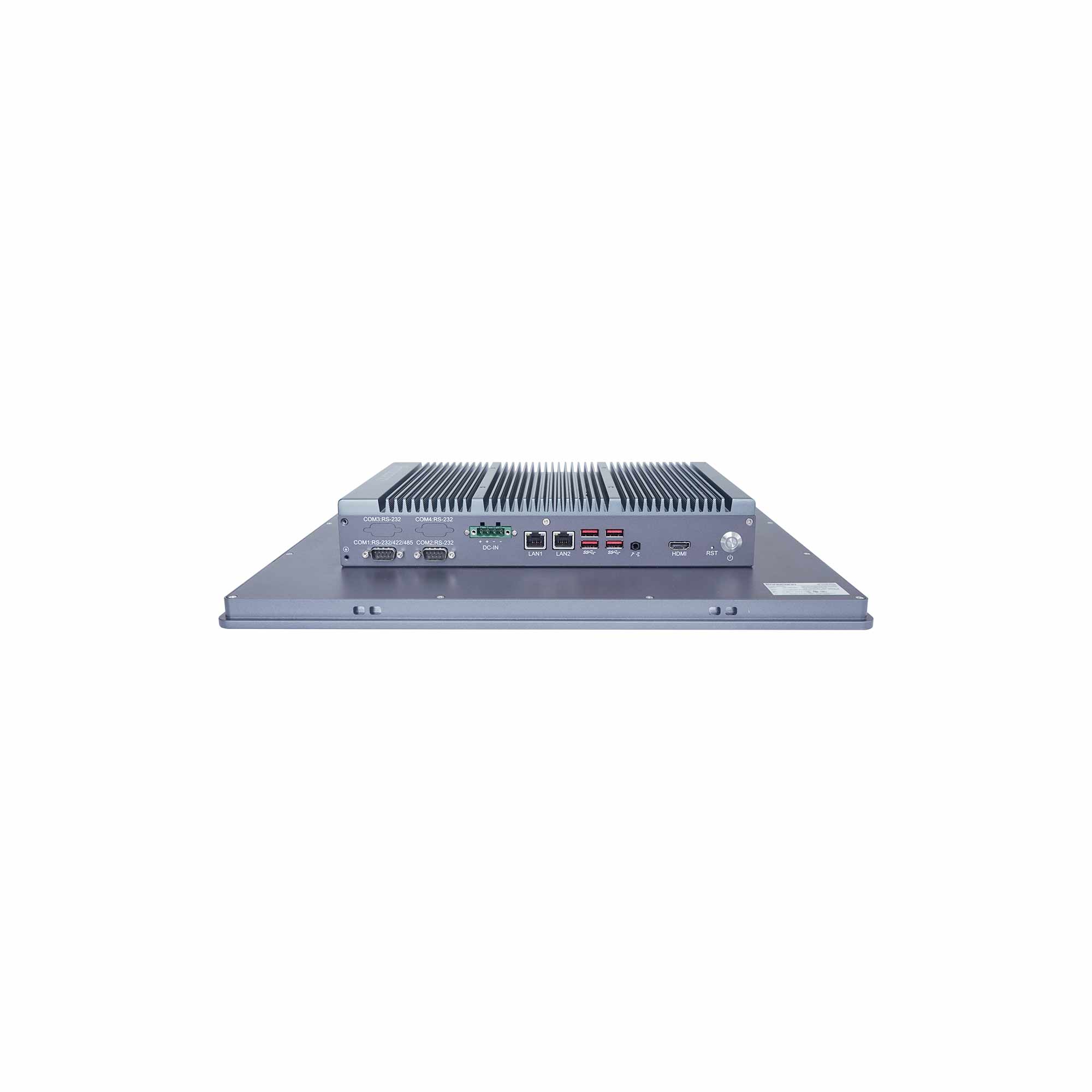

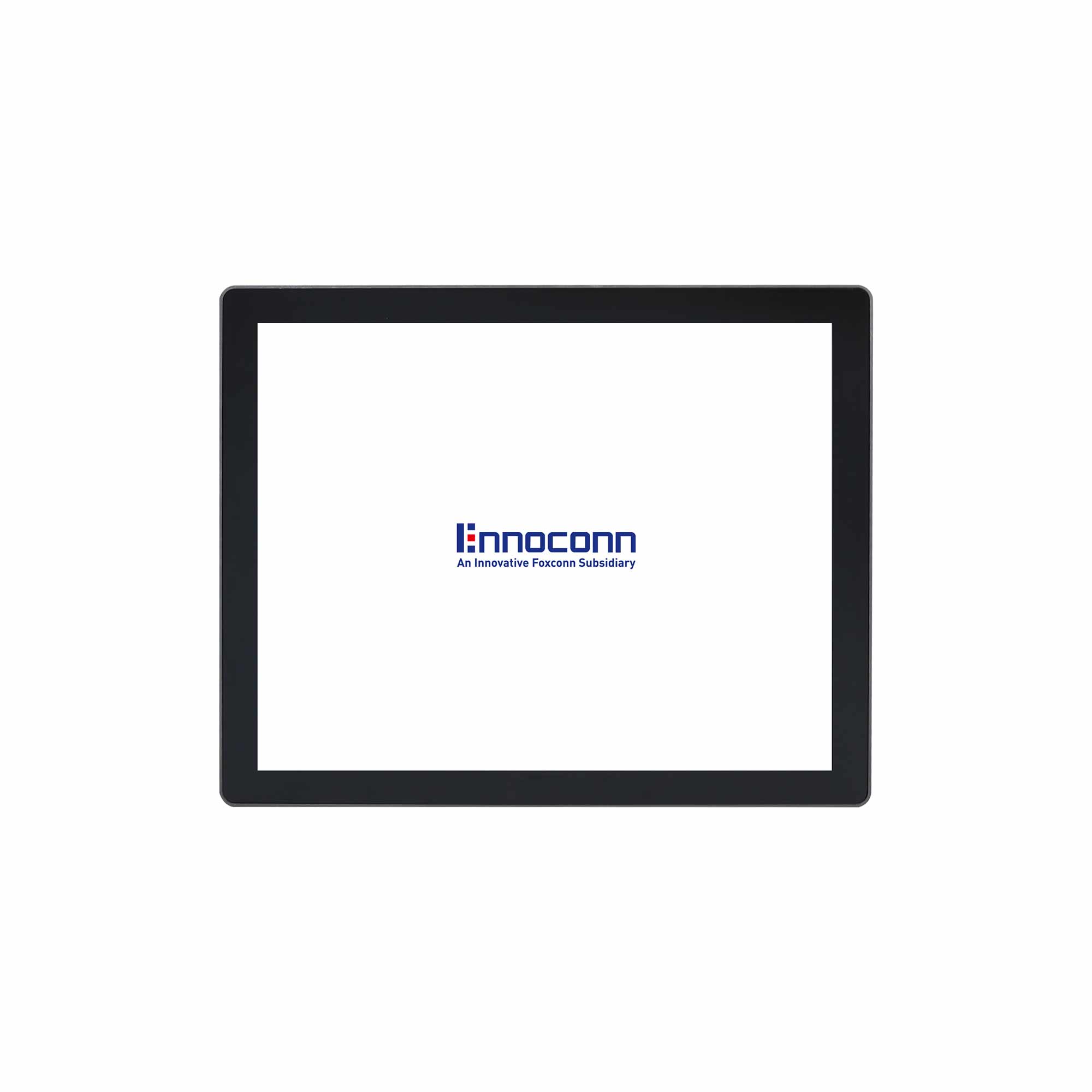

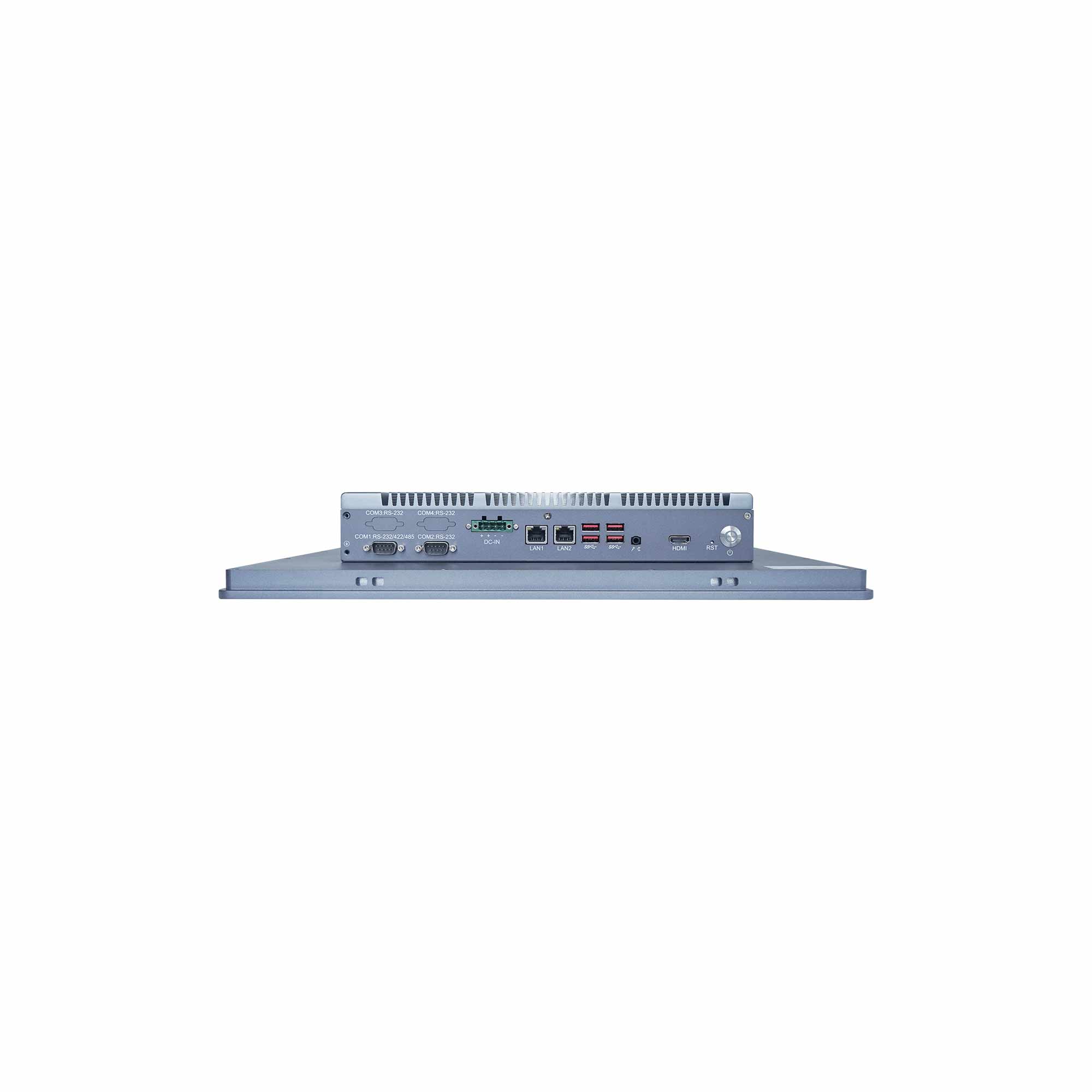

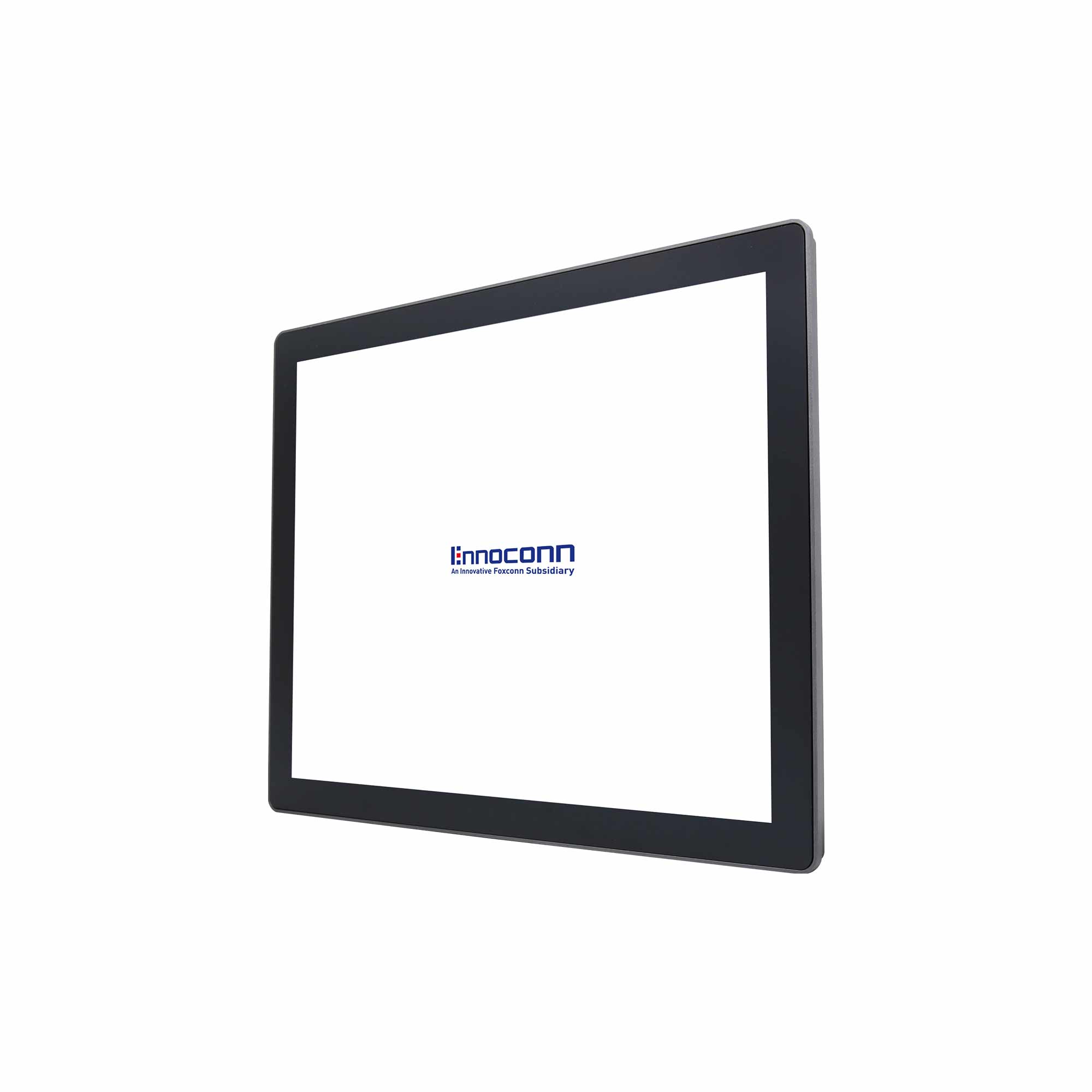

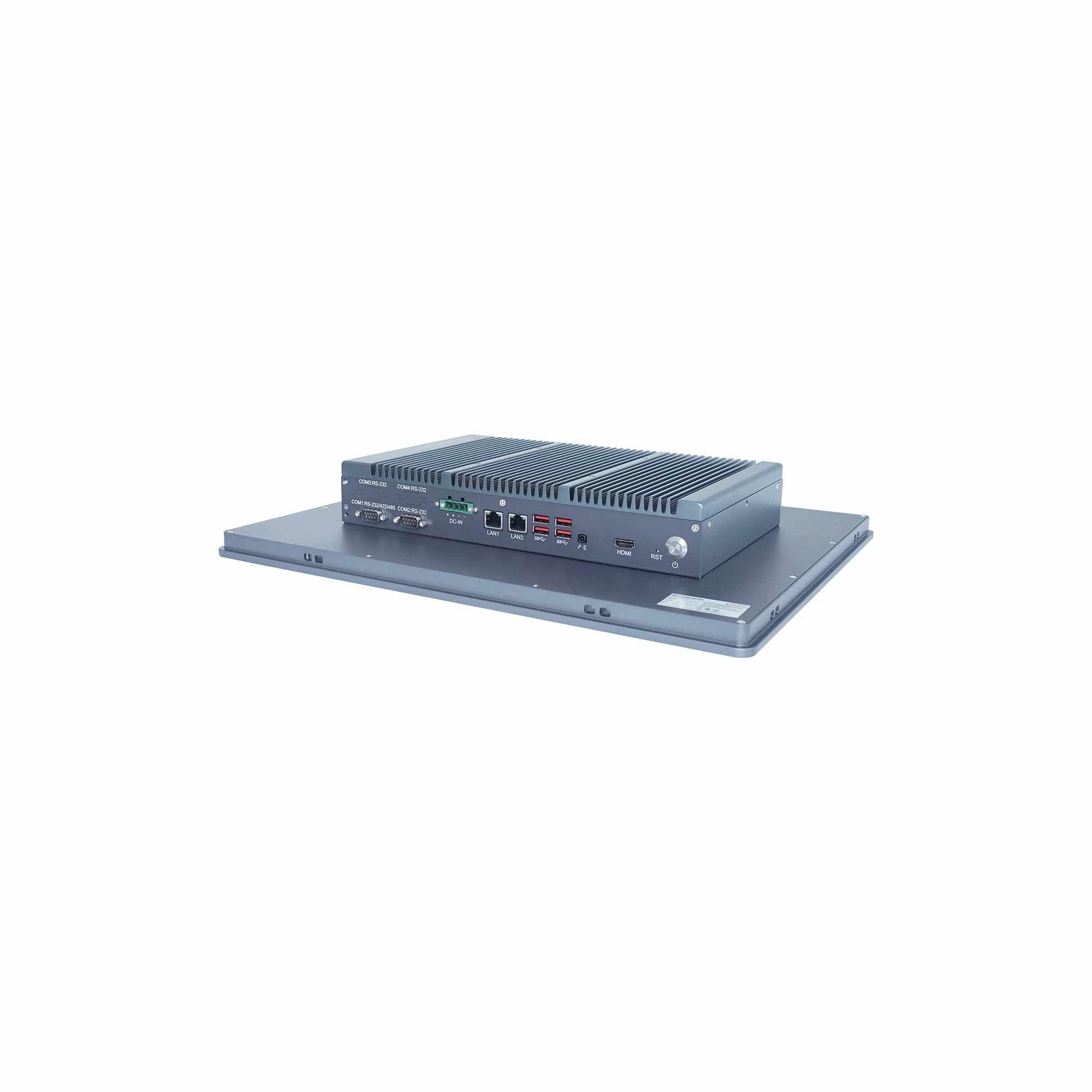

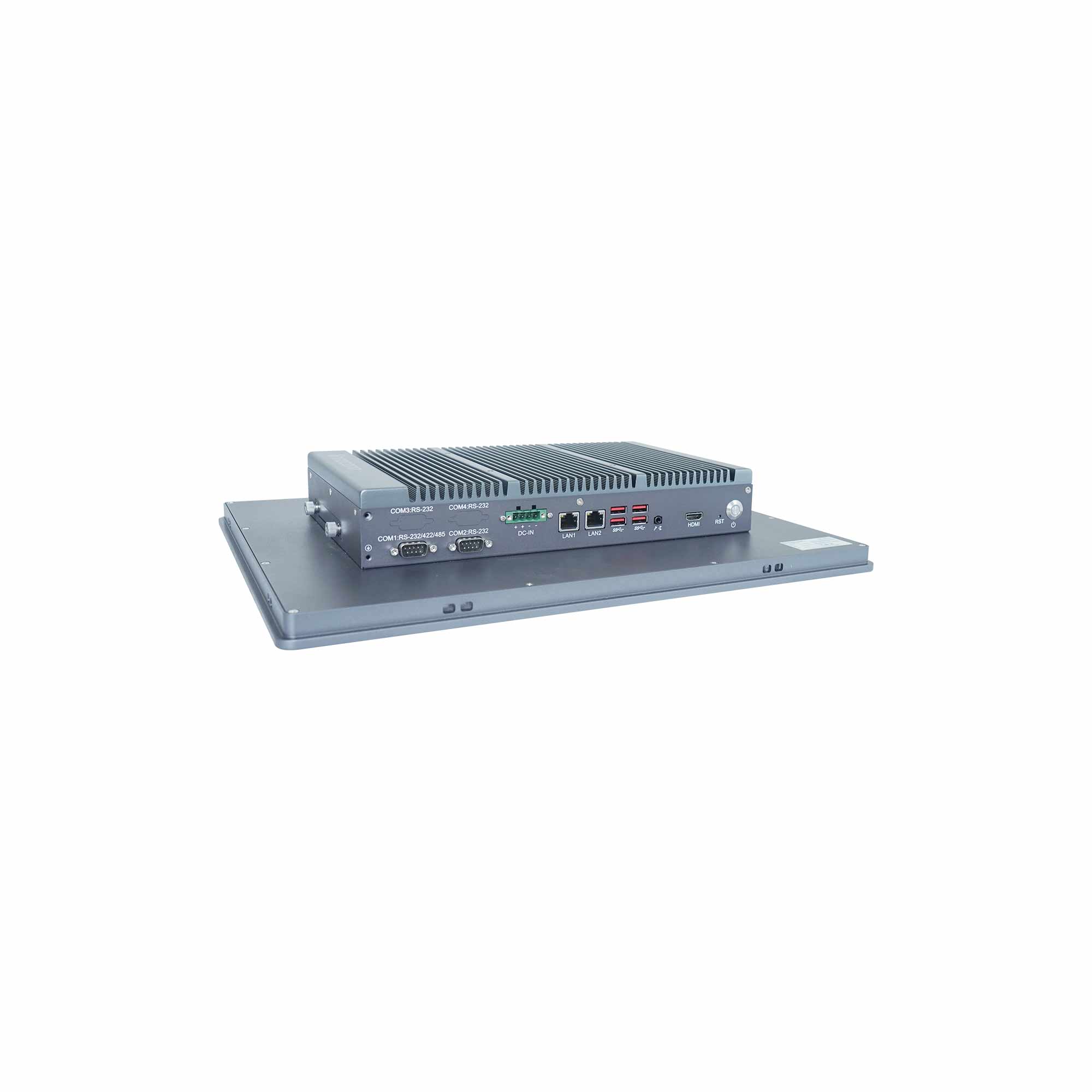

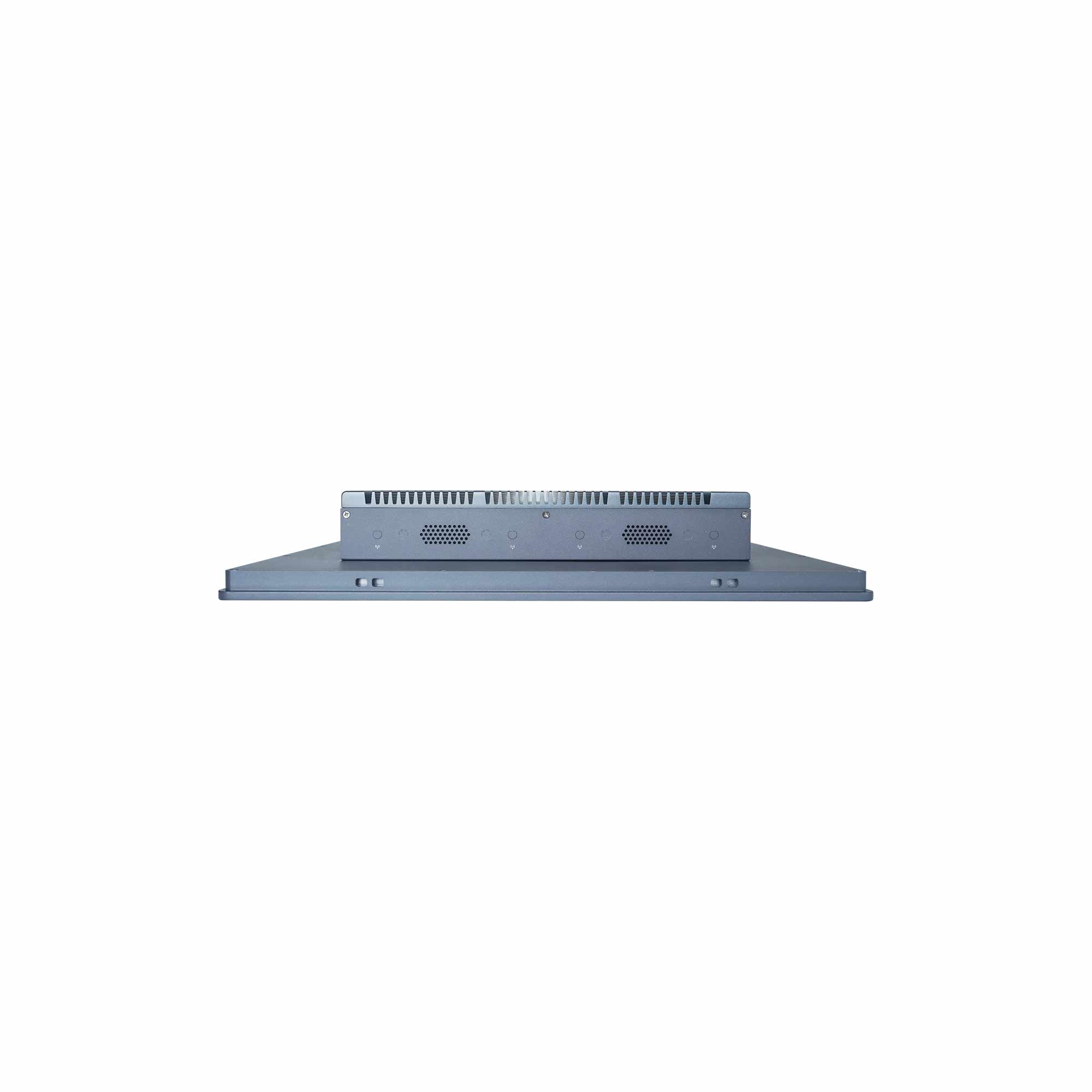

19寸工業平板電腦 CEP-19RS-Q37I

Intel^? Coffee lake CPU
19 inches highlight LED panel，front panel can support IP66
Aluminum alloy fuselage makes it light, firm and stable, and has better heat dissipation effect
Industrial-grade true-flat 5-wire resistive touch screen
Support WiFi/BT/4G/5G(optional）
Support dual GbE LAN
Wide voltage 12~36V DC-IN, lockable phoenix connector
Support HW Reset
Grounding protection for product shell
Support 1 x 2.5 inch HDD/SSD expansion
Support standard VESA and panel mount

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

工業無風扇觸摸一體機，采用19寸全平面五線電阻屏，Intel^?Celeron G4900T Intel^?i3-8100T/i5-8500T/i7-8700T處理器

系統 System

處理器 Processor	Intel Celeron G4900T (2.9GHz)-2 cores/2 Cache Intel^? Core ? i3-8100T Processor (3.1GHz)-4 cores/4 Cache Intel^? Core ? i5-8500T Processor (2.1GHz, up to 3.5GHz)-6cores/6 Cache Intel^? Core ? i7-8700T Processor (2.4GHz, up to 4.0GHz)-6 cores/12 Cache
內存 Memory	1 x DDR4 2400/2666 MHz SO-DIMM, up to 16 GB
存儲 Storage	1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2280 SSD slot
圖形 Graphics	Intel^? UHD Graphics 610/630
操作系統 OS	Windows 10, Linux
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

顯示屏 Display

尺寸 Size	19 inches
分辨率 Resolution	1280(H) x 1024(V)
屏幕寬高比 Ratio	4:3
亮度 Brightness	250 nits
可視角 Viewing Angle	CR ≥ 10,89° (H)/89° (V)
對比度 Contrast Ratio	1000
背光 Backlight	LED Backlight
背光壽命 Backlight Lifetime	30000Hrs

觸摸屏 Touchscreen

觸摸屏 Touch Type	5-Wire Resistive Touch
觸擊 Touch	35,000,000 times

外部接口 External I/O

串口 COM	1 x RS232/RS422/RS485(COM1) 1 x RS232
GPIO 口	NA
USB	4 x USB 3.0
網口 Ethernet	1 x RJ45 Intel^? I211AT (10/100/1000 Mbps) 1 x RJ45 Intel^? I219-LM GbE (10/100/1000 Mbps)
顯示 Video	1 x HDMI (up to 4096 x 2304@24hz)
音頻 Audio	1 x Audio(Line-out&Mic-in 2 in 1), Realtek^? ALC888S-VD2-GR HD Audio codec 2 x Speaker 4Ω3W
重置Reset	1 x HW reset
開關按鍵Power bottom	1 x Power bottom W/LED( System Power ON -LED OFF/Power ONLED ON/Power OFF-LED OFF)
電源輸入 Power Input	1 x Power Connector (4P Phoenix)

內部接口 Internal I/O

擴展接口 Expansion

1 x M.2 Key-B 3052slot(4G/5G supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 2 x USB3.0 wafer 2 x USB2.0 pin header 2 x RS232 pin header

機構 Mechanical

前框 Front Panel	Aluminum
鋁擠 Heat-Sink	Aluminum
底板 Rear Cover	SECC
安裝方式 Mounting	Panel Mount, Wall and VESA-mount (100 x 100mm)
尺寸 Dimension	428.5(W) x 353.5(H) x 71(D)mm
建議開孔尺寸Cut Out	420.5 x 345.5mm
重量 Weight	約6.8kg

環境 Environmental

操作溫度 Operation Temp.	-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 40℃ with 0.7 m/s air flow (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 70℃
濕度 Relative Humidity	5% ~ 95%, Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10g 11ms operation, 30g 11ms Non-operation
前面板防護 Ingress Protection	Front panel IP66
