產品介紹：

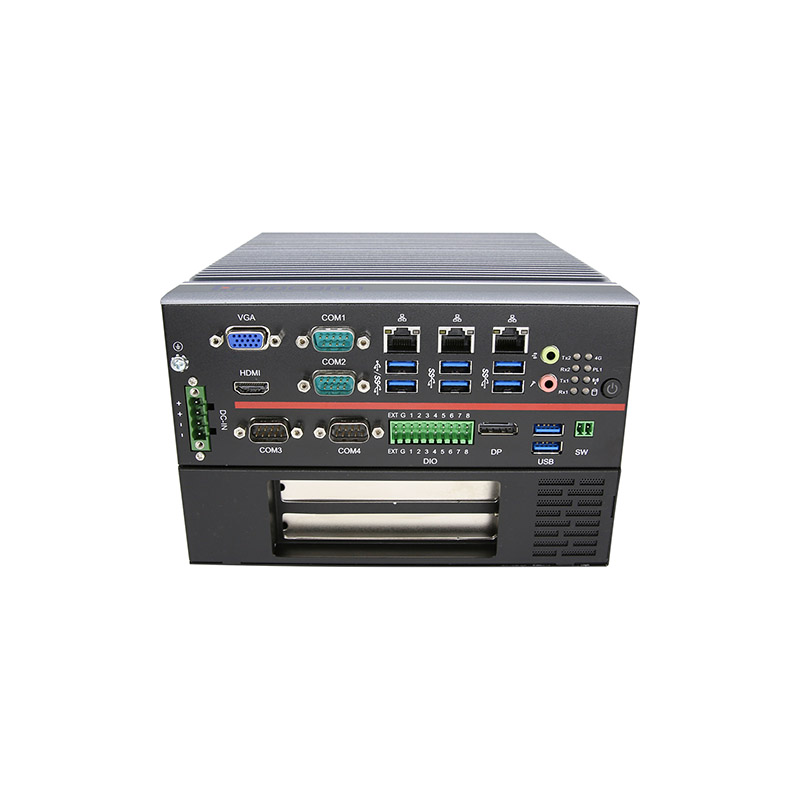

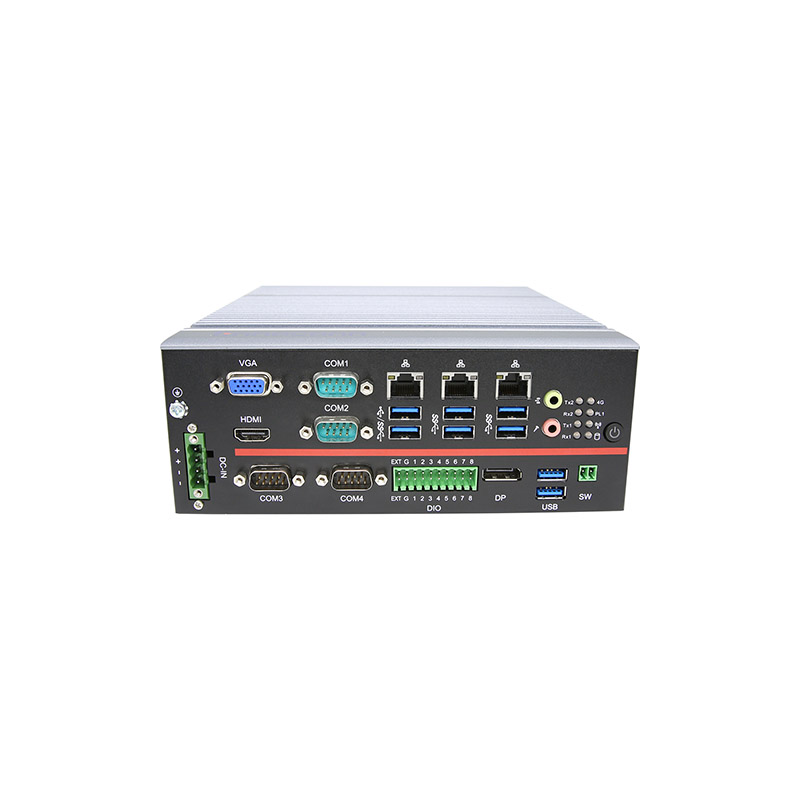

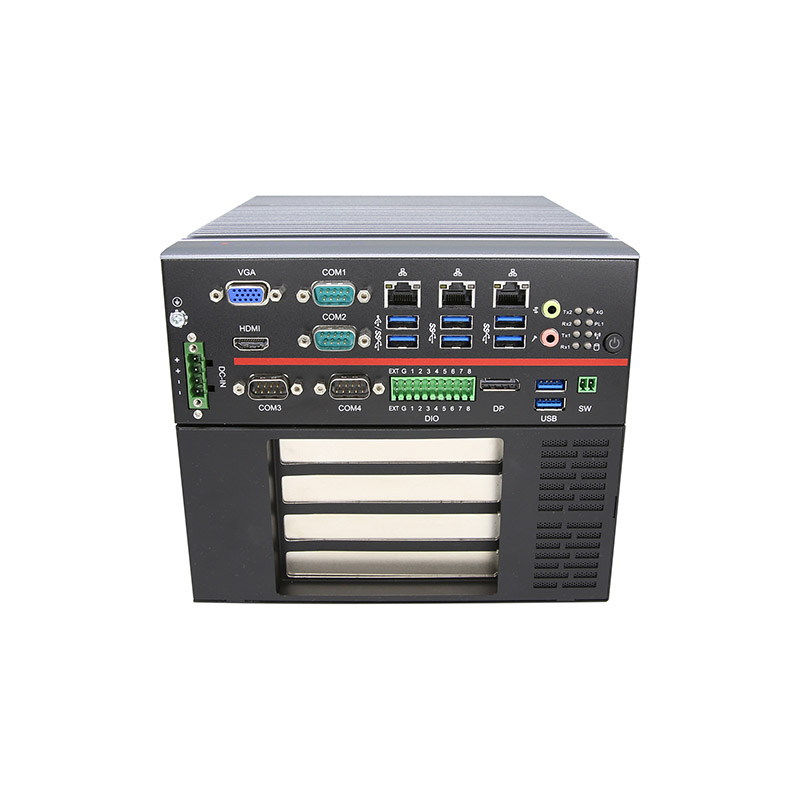

Intel? Skylake-S/Kabylake-S series LGA1151Pentium/Celeron/Core processor, H110 chipset, 3 x LAN, max 6 x COM, 10 x USB, 16bit GPIO, Optional 9-36V power input, fanless system
| 網口 Ethernet | 2 x RJ45, Intel? i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel? I219LM GbE (10/100/1000 Mbps) |
| 顯示 Video | 1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160 1 x DP++: max resolution up to 4096 x 2304 |
| 音頻 Audio | 1 x Line-out, 1 x Mic-in, Realtek? ALC269 HD Audio codec |
| 串口 COM | 4 x RS232/422/485 auto-flow 2 x RS232 (optional by internal pin head) |
| USB | 4 x USB3.0, 4 x USB2.0, 2 x USB2.0 pin head |
| GPIO | 1 x 16bit programmable GPIO (default 3.3V, 5V optional) |
| 按鈕 Button | 1 x Power button |
| 指示燈 LED | 1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Yellow blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED (Green blink for communication) 1 x 4G communication LED (Green blink for communication) 1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, etc） |
| 遠程開關 Remote ON-OFF | 1 x Remote ON-OFF |
| 擴展接口 Expansion | 1 x Mini-PCIe slot 1 x M.2 2230 slot |
| SIM 卡 | 1 x 3G/4G SIM socket |
| 操作溫度 OperatingTemp. | -10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7 m/s air flow (HDD) |
| 存儲溫度 Storage Temp. | -40℃ ~ 85℃ |
| 濕度Relative Humidity | 5% ~ 95%, 非凝結狀態Non-condensing |
| 振動 Vibration | SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
| 機械沖擊 Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
| 電源輸入 Power Input | 19-24V DC, 4-pin phoenix connector (9-36V DC optional with power board) |
| 外觀 Housing | 鋁合金 Aluminum Alloy |
| 安裝方式 Mounting | 桌面式 (Desk-Mount), 壁掛式 (Wall-Mount) |
| 尺寸 Dimension | 200 x 230 x 78 mm |
| 重量 Weight | 3.5kg |
| 安規認證 Safety Certification | CCC |
